Big Tex 16TL
Super Duty Tilt Bed Equipment Trailer
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models—from 20-feet to 22-feet—this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 20' | 17,500# | 4,760# | 13,420# |
| 83" x 20' GN | 17,500# | 4,880# | 12,620# |
| 83" x 22' | 17,500# | 4,140# | 13,360# |
| 83" x 22' GN | 17,500# | 4,940# | 12,560# |
Key Features
REAR KNIFE EDGE
VALVE CONTROL ON HYDRAULIC CYLINDER
HEAVY DUTY DIAMOND PLATE STEEL FENDERS
STATIONARY FRONT DECK
Equipment
BODY
Standard
Option
8" Channel Frame
3" Channel on 16" Centers Crossmembers
3/16" Fabricated Front Stop Rail
9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) Fenders
75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge
Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism
4' x 83" (20' Models) Stationary Deck
6'x 83" (22' Models) Stationary Deck
14° Tilt Deck Angle
Treated Pine Floor
Black Paint
3/16" Fabricated Front Stop Rail
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
1/8” Diamond Plate Steel Floor (Per Square Foot)
CARGO CONTROL
Standard
Option
Stake Pockets Along Both Sides (Quantity Varies by Length)
(6) 5/8" D-Rings
Rub Rail Along Both Sides
Extra 5/8" D-Rings
Recessed D-Ring in Floor (Steel Floor Only)
TIRE/WHEEL
Standard
Option
ST215/75 R-17.5 Load Range H
8-Lug
Front Spare Tire Mount
Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Side Wind)
AXLES
Standard
Option
2 - 8,000# Premium, with Oil Bath and Valcrum Caps
Torsion Axles
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Adjustable 2-5/16" Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler
360° view
Not available for this model.

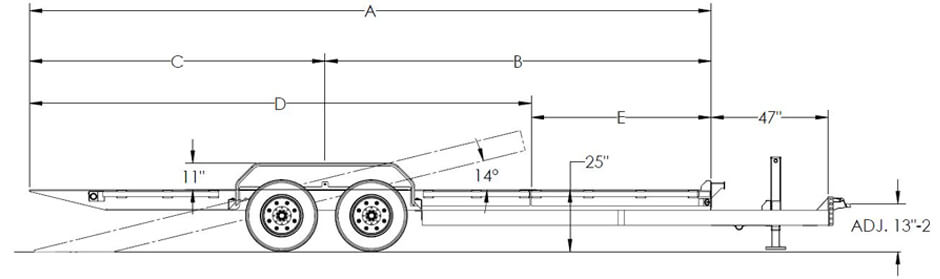

Measurements
