Big Tex 4XPH, Pintle, 102" x 25', 48K, Dovetail

Pintle Heavy Equipment Transport

In Stock

List Price

$34,741

Cash Price*

$33,470

Pay As Low As $763.87 / month
*Cash, finance or wire transfer price.
Applicable taxes and fees not included

Call (951) 846-1480

Located at: 1425 East 6th Street, Beaumont, CA

Product Highlights

Year: 2024

Model: 4XPH-20+5

Axle: 2 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath

GVWR: 48000 lbs

Cargo Capacity: 39050 lbs

Hitch Type: Pintle Hitch

Length: 20' + 5''

Ramps: 5' Double Hinged, Spring Assisted Flip-Over Ramps

Tail: Dovetail

Color: Black

VIN: 344297

CUSTOMIZE YOUR PAYMENT

Down Payment

Amount To Be Financed

Term (Loan Length)

APR

Monthly payment as low as

$763.87

Pre-qualify Apply Now

*36 and 48 month terms available for loan amounts less than $5,000. 36, 48, and 60 month terms available for loan amounts above $5,000. 72 and 84 month terms available for loans above $10,000. Program minimum amount financed is $1,000 and a minimum of 15% down payment may be required. See dealer for details. Offer subject to credit approval by Synchrony Bank. Payments and prices are estimated using base models. Price and payment do not include tax, registration, other fees or accessories. All pricing is set by dealers, please contact your nearest dealer for pricing.

The toughest jobs demand the toughest trailer. Built specifically to address the needs of heavy-duty equipment haulers around the world, the 4XPH Pintle Heavy Equipment Transport Trailer is designed from end-to-end for maximum strength, durability, and reliability against the toughest odds. Equipped with a 14" I beam and junior I beam crossmembers, anti-skid braking system, and brakes and axles optimized for the heaviest loads, this heavy-duty pintle hitch trailer is a comprehensive solution for those transporting heavy machinery and construction equipment.

Feature
Color	Black
Axle GAWR, lubrication, and Brakes and Quantity	2 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath
GVWR	48000 lbs
Cargo Capacity	39050 lbs
Length	20' + 5''
Ramps	5' Double Hinged, Spring Assisted Flip-Over Ramps
Tail	Dovetail
Jack	12,000# Two Speed Drop-Leg Jack (Top Wind)
Tires	ST215/75 R-17.5 Load Range H Radial Tires
Storage	Storage Tray in Tongue
Brakes	Air Brakes on Both Axles w/ Anti-Skid System on Front Axle
Suspension	Heavy-Duty 44,000# w/ Automatic Slack Adjusters
Coupler	3" Pintle Ring w/ 3-Position Adjustment Plate
Frame	14" I-Beam, 26#
Cross-Members	6" Jr. I Beam, 16" Centers
Front Stop Rail	3/16" Fabricated Front Stop Rail
Floor	2" Nominal Oak
Dovetail	5' Cleated Dovetail
Trailer Plug	7-Way Semi-Style
Lights	Recessed, Grommet-Mounted L.E.D. Lighting
Wiring	Sealed, Modular Cold-Weather Wiring Harness
Bolt Pattern	6.75 x 17.5, 10 Bolt Bud
Spare Mount	Front Spare Tire Mount
Paint Type	Professional Finish w/ Primer Standard
Tie-Downs	(6) 1" D-Rings to Secure Equipment
Mudflaps	Standard
Side Rail	8" Channel
Steps & Handles	(2) Side Bed Steps

We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.

Product Features

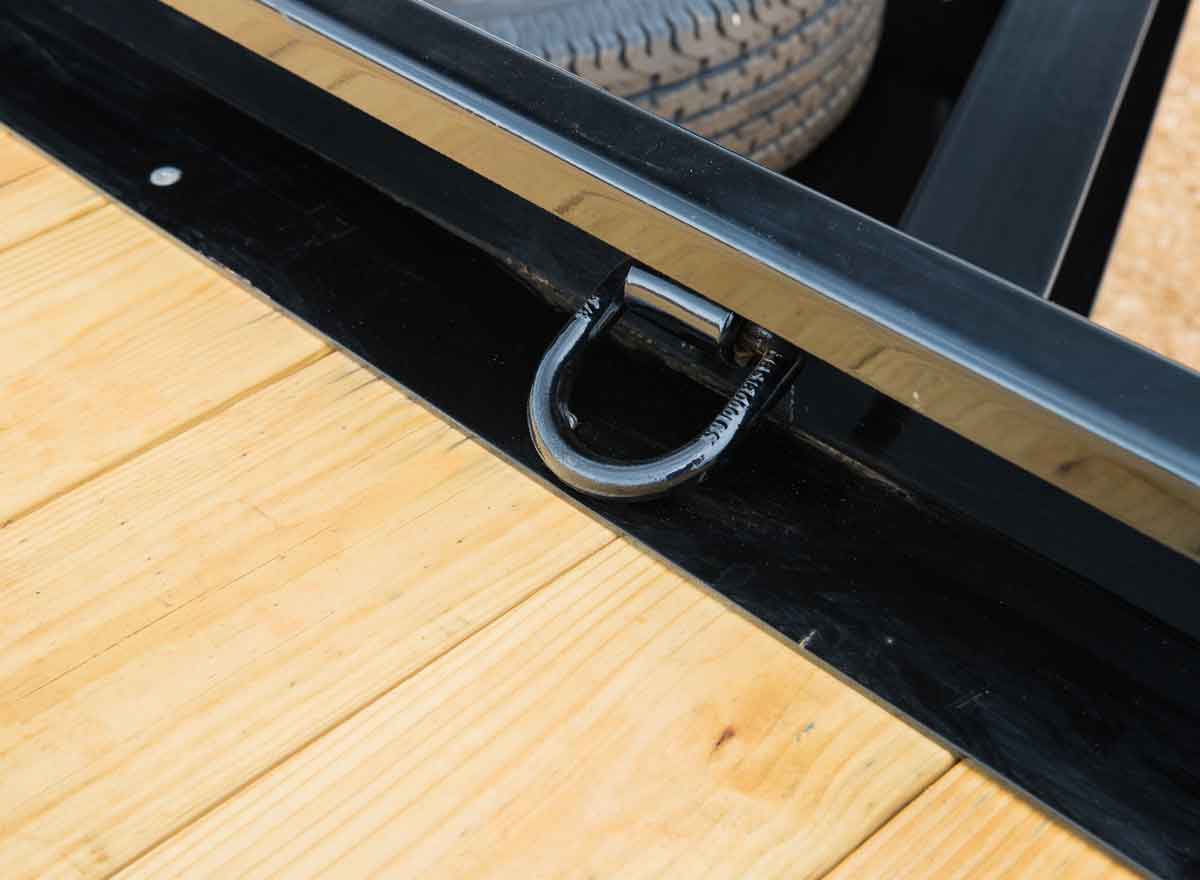

Keep Your Haul Secured

Safeguard cargo with a solid one-piece stop rail and reliable d-ring tie downs, specifically designed to provide maximum security and stability during loading and towing.
Robust Adjustable Pintle Ring

A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
Heavy-Duty Adjustable Suspension

Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.

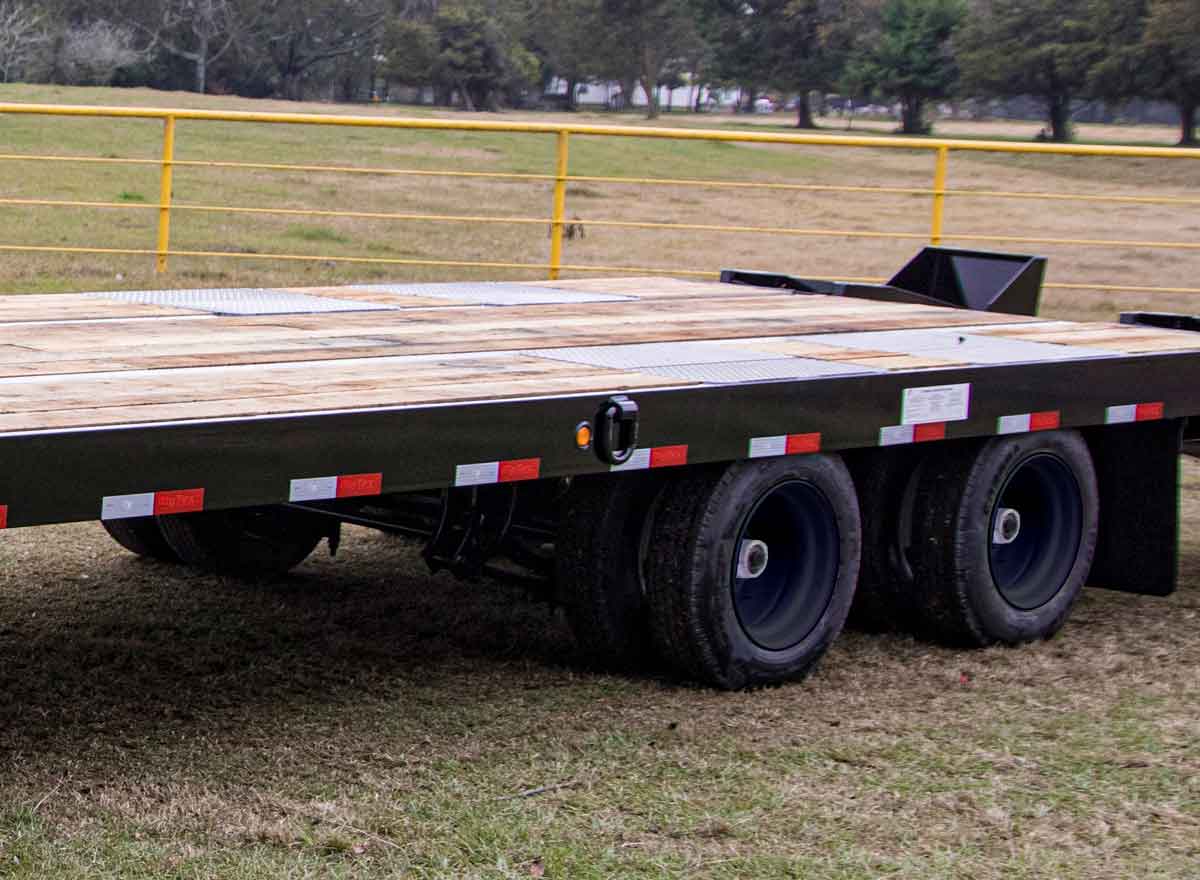

Anti-Skid Braking System

The anti-skid braking system helps keep your trailer system under control during windy or running wind pressure.
