Big Tex 16GN, Gooseneck, 102" x 40', 17.5K, Dovetail, Mega Ramps

Super Duty Single Wheel Tandem Axle Gooseneck

In Stock

List Price

$15,129

Cash Price*

$14,589

Pay As Low As $332.65 / month
*Cash, finance or wire transfer price.
Applicable taxes and fees not included

Call (978) 528-4500

Located at: 180 Crawford Street, Leominster, MA

Product Highlights

Year: 2025

Model: 16GN-40D5A-MRBK

Axle: 2 - 8,000# Dual Wheel w/ Quick Lubricating Hubs

GVWR: 17500 lbs

Cargo Capacity: 10053 lbs

Hitch Type: Gooseneck

Ramps: 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps)

Tail: Dovetail

Color: Black

VIN: 362580

CUSTOMIZE YOUR PAYMENT

Down Payment

Amount To Be Financed

Term (Loan Length)

APR

Monthly payment as low as

$332.65

Pre-qualify Apply Now

*36 and 48 month terms available for loan amounts less than $5,000. 36, 48, and 60 month terms available for loan amounts above $5,000. 72 and 84 month terms available for loans above $10,000. Program minimum amount financed is $1,000 and a minimum of 15% down payment may be required. See dealer for details. Offer subject to credit approval by Synchrony Bank. Payments and prices are estimated using base models. Price and payment do not include tax, registration, other fees or accessories. All pricing is set by dealers, please contact your nearest dealer for pricing.

Need more power? The low-profile 16GN Single Wheel Tandem Axle Gooseneck Trailer has you covered. The 16GN is our super-duty, single-wheel gooseneck that delivers a whole lot more cargo capacity, all without the need for dual-wheel axles. For construction, equipment rental companies, and agricultural operations, this heavy-duty, hardworking trailer has all the features you’d expect; from a pierced beam, high tensile steel frame, and dual drop-leg jacks to an integrated toolbox and premium axles. Because for the job that you do from morning until night, you deserve a professional-grade trailer that packs the muscle you need—at a cost that doesn’t blow your budget.

Feature
Color	Black
Axle GAWR, lubrication, and Brakes and Quantity	2 - 8,000# Dual Wheel w/ Quick Lubricating Hubs
GVWR	17500 lbs
Cargo Capacity	10053 lbs
Ramps	5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps)
Tail	Dovetail
Jack	Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
Tires	ST215/75 R-17.5 Load Range H
Storage	Front Lockable Toolbox Uprights w/ Chain Holder
Brakes	Forward Self-Adjusting Electric Brakes on Both Axles
Suspension	Multi-Leaf Slipper Spring w/ Equalizer
Coupler	2-5/16” Demco EZ Latch Gooseneck Coupler
Frame	12" I-Beam, 14# (16# I-Beam for 28' and longer)
Cross-Members	3" Channel
Floor	Treated Pine Floor
Dovetail	5' Cleated Dovetail (Standard on D5A Models)\|Straight Deck
Stake Pockets	Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug	7-Way RV
Lights	Recessed, Grommet-Mounted L.E.D. Lighting
Wiring	Sealed, Modular Cold-Weather Wiring Harness
Bolt Pattern	8-Bolt
Spare Mount	Top of Neck Spare Tire Mount
Paint Type	Professional Finish w/ Primer Standard
Rubrail	3/8” Heavy Duty Rub Rail on Both Sides
Break-Away Kit	Complete Breakaway System w/ Zip™ Breakaway Cable and Charger
Pipe Chain Spools	1-1/4” Pipe Chain Spools Between Stake Pockets Pockets
Steps & Handles	(2) Side Bed Steps + Handles
Work Light	Deck Work Light Package w/ Step Illumination

We know how important it is to safeguard your investment, which is why we provide a range of warranty options tailored to fit your needs. Discover more about our available warranty plans.

Product Features

Pipe Spools, Rub Rail and Stake Pockets

Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.
Optional Mega Ramps

Provide a loading surface that covers almost the complete deck width, delivering maximum stability and flexibility during loading.

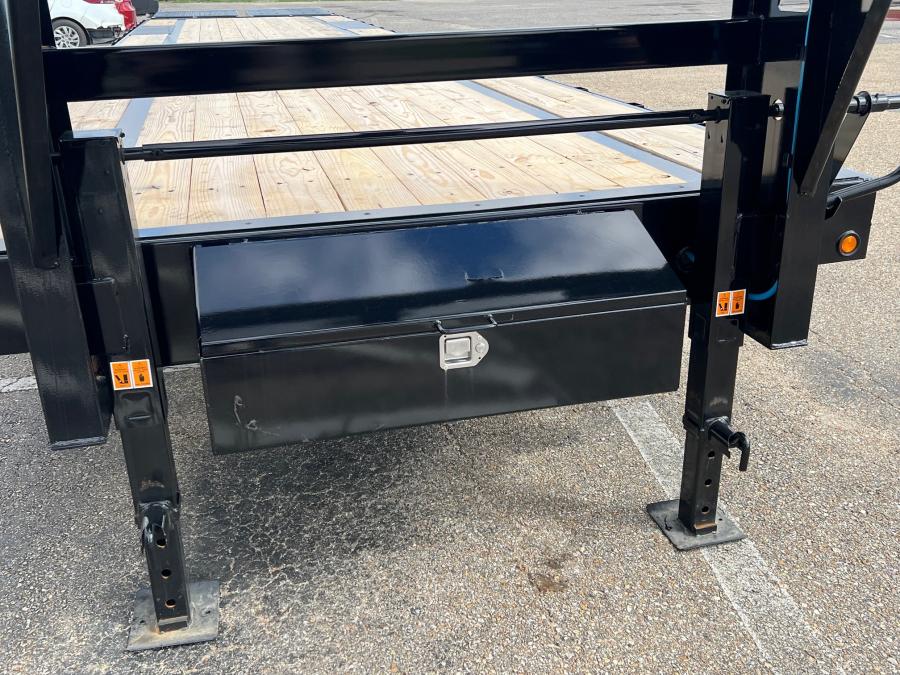

Lockable Toolbox

A lockable toolbox provides a large amount of space to securely haul tools.

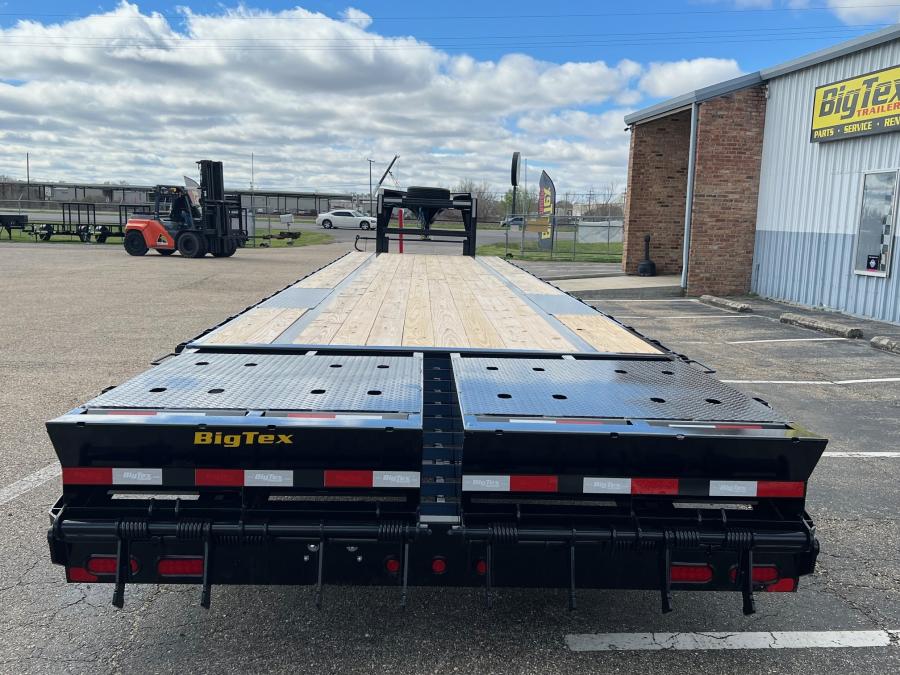

Flip Over Ramps

5' dovetail and 5' double-hinged spring assist flip-over ramps enable easier loading and unloading of equipment.
